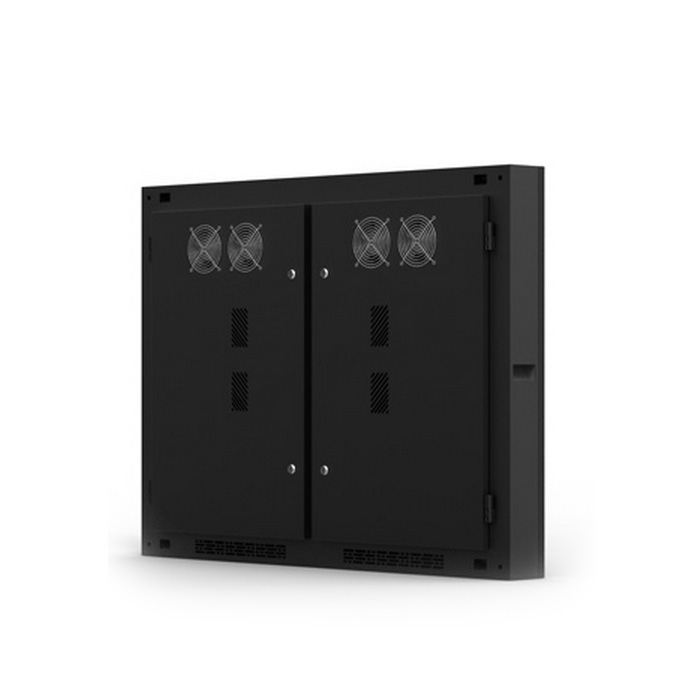

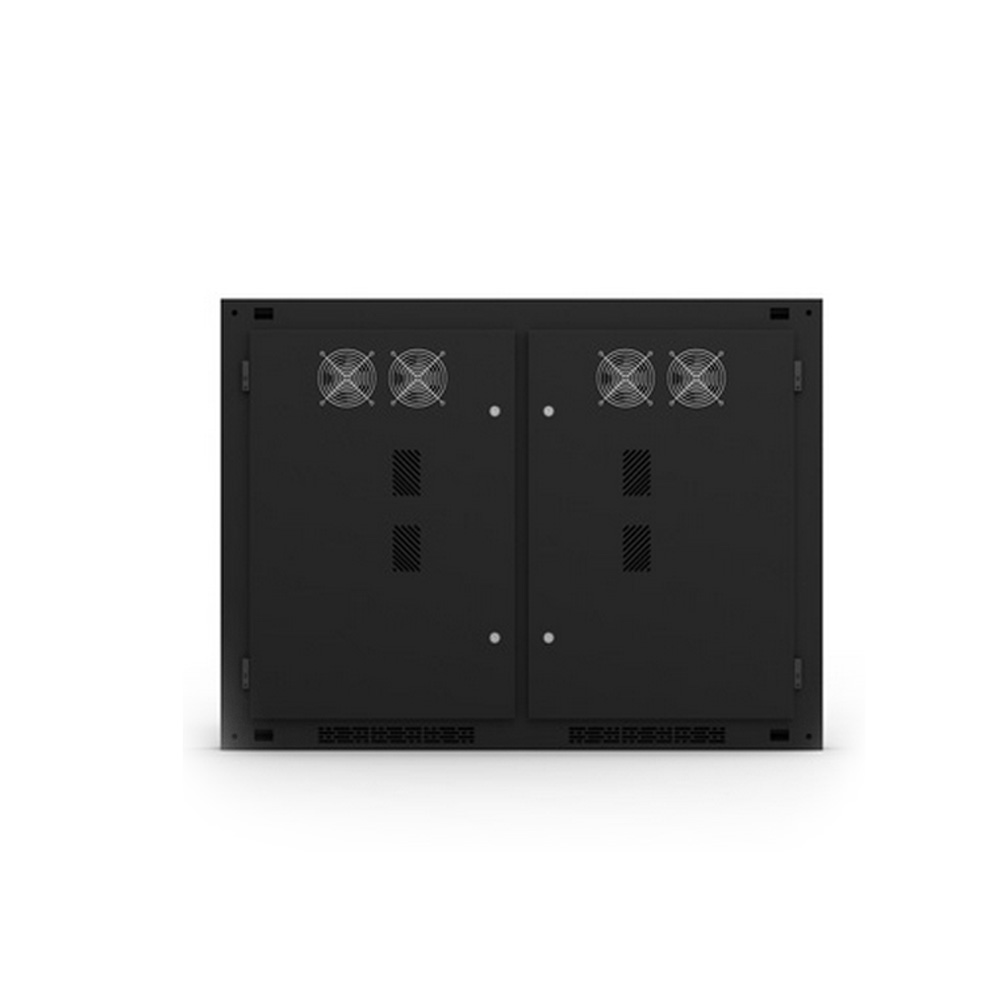

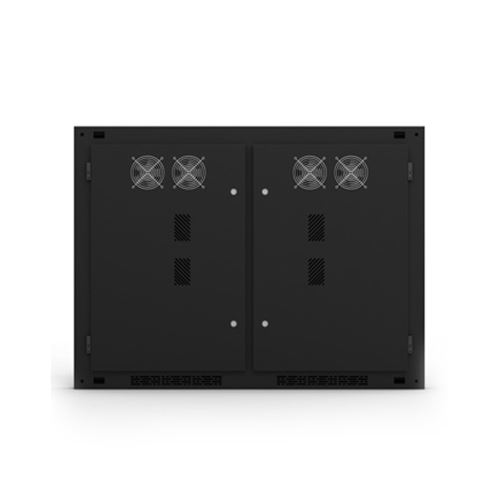

FI10 INDOOR FIXED LED DISPLAY
FI10
|
Item
|
Value
|
| Pixel Pitch(mm) |
10
|
| Pixel Density(pixels/㎡) |
10000
|
| Viewing Angle(Deg.) |
H: 140/ V: 140
|
| Brightness(nits) |
1500
|
| Grey Level(bit) |
16
|
| Refresh Rate(Hz) |
1920
|
| Panel Dimension(mm) |
1280(W)x960(H)
|
| Panel Dimension(inch) |
50.39(W)x37.80(H)
|
| Panel Resolution(pixels) |
128x96
|
| Panel Weight(kg) |
38
|
| Panel Type and Material |
Iron/Aluminum
|
| Module Size(mm) |
320(W)x160(H)
|
| Module Size(inch) |
12.60(W)x6.30(H)
|
| Module Resolution(pixels) |
32x16
|
| Protection Grade(Front/Rear) |
IP20
|
| Serviceability |
Rear
|
| Avg.Power Consumption(W/㎡) |
175(AC)
|
| Max.Power Consumption(W/㎡) |
525(AC)
|
| Drive Mode |
1/4 scan
|
| Brightness Adjustment |
Manual/Auto/Programmable
|
| Operating Temp/Humidity(℃/%RH) |
-20~+40/10~90
|
| Storage Temp/Humidity(℃/%RH) |
-40~+60/10~80
|
| Lifetime(hours) |
≥50000(Nomal Temp)
|
| Compliant Standard |
CE,FCC,RoHS
|
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to LED Cube System Sdn Bhd |
|
