RK53S ROCK SERIES LED DISPLAY
RK53S

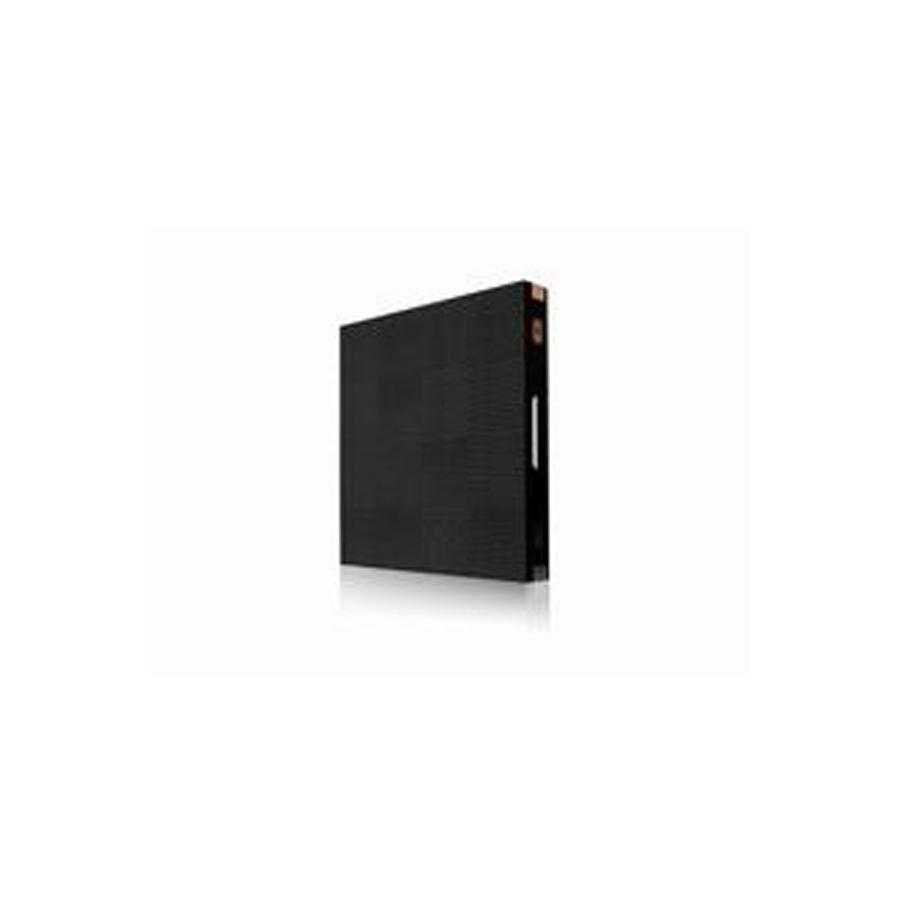

RK53S P5.33mm Outdoor Stage LED Display
|
Cabinet only weighs 18kg, thickness 75mm, saving transportation cost and labor intensity;
|
|
Spring locks connect the cabinets vertically, hanging max 15 cabinets in a line;
|
|
Macromolecular flexible mask with glareless surface and better contrast ratio;
|
|
Fast spring locks connect the cabinets horizontally, only 10 seconds for per cabinet;
|
|
Nanotechnology and unique positioning system, making the installation and dismantlement in one step;
|
|
All external cable with quick inserted plug for easy installation and maintenance;
|
|
Signal and power indicator & reset button well shows the working condition of the whole screen;
|
|
Adopting Silica gel to make the cabinet waterproof and sealed, IP65
|
|
Item
|
Value
|
| Pixel Pitch(mm) |
5.33mm
|
| Pixel Density(pixels/㎡) |
35156dots/m2
|
| LED Configuration |
1R,1G,1B
|
| Colors |
>16.7M
|
| Brightness(nits) |
4500CD/M2
|
| Grey Level(bit) |
14bit
|
| Refresh Rate(Hz) |
>960HZ
|
| Viewing Angle(Deg.) |
H: 140/ V:140
|
| Dimension |
640mm x 640mm
|
| Resolution(pixels) |
120 x 120mm
|
| Panel Weight(kg) |
18KG
|
| Protection Level |
IP65
|
| Input Voltage |
AC 110V~220V+/-10%
|
| Source |
DVI,RGB,CVBS,HDMI,YUV,SDI etc
|
| Operating Temperature |
-30℃~ +45℃
|
| Storage Temperature |
-40℃~ +80℃
|
| Operating Humidity |
10%~90%
|
| Storage Humidity |
10%~90%
|
| Life Span |
100,000 hrs
|
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to LED Cube System Sdn Bhd |
|
