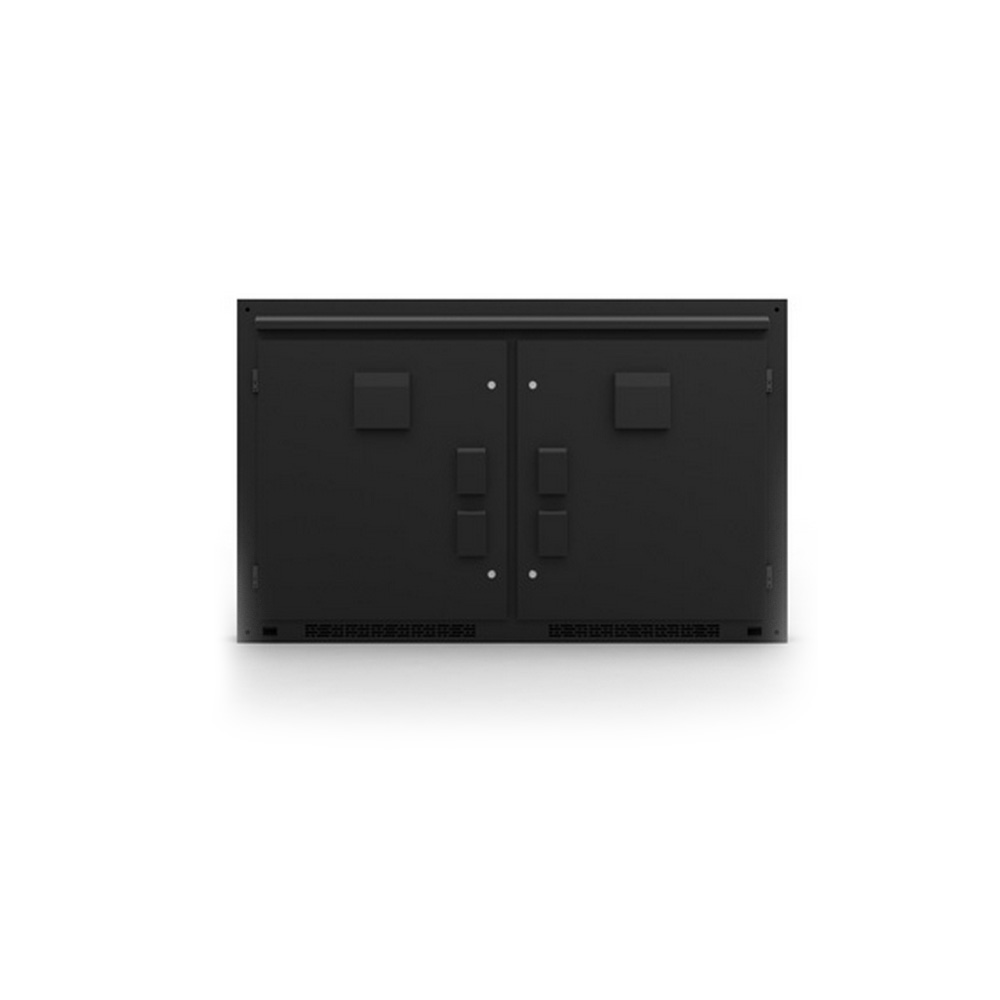

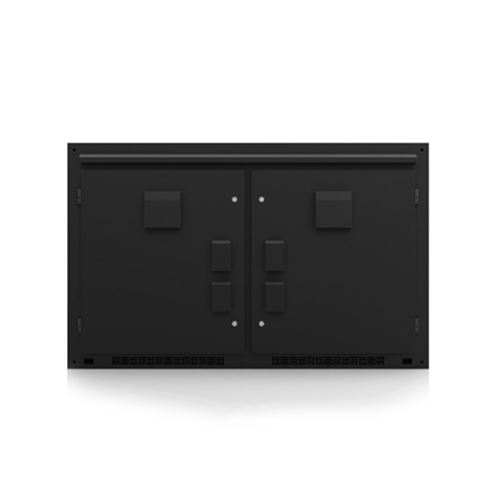

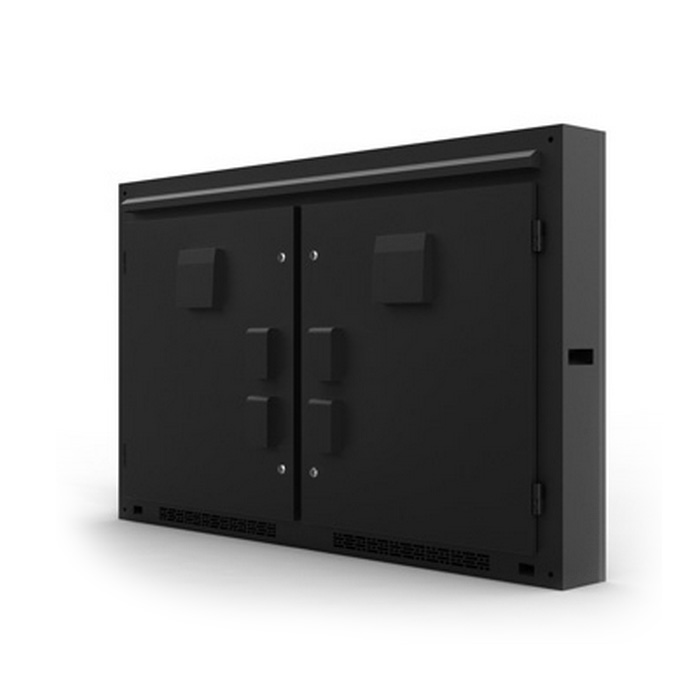

F12 OUTDOOR FIXED LED DISPLAY
F12
|
Item
|
Value
|
| Pixel Pitch(mm) |
12
|
| Pixel Density(pixels/㎡) |
6944
|
| Pixel Configuration |
DIP
|
| Brightness(nits) |
8000
|
| Viewing Angle(deg.) |
120(Horizontal),70(Vertical)
|
| Driving Mode |
1/2 scan
|
| Grey Level(bit) |
16
|
| Refresh Rate(Hz) |
1920
|
| Module Size(mm) |
192(W)×192(H)
|
| Module Size(inch) |
7.56(W)×7.56(H)
|
| Module Resolution(pixels) |
16×16
|
| Panel Size(mm) |
1536(W)×960(H)
|
| Panel Size(inch) |
60.47(W)×37.80(H)
|
| Panel Resolution(pixels) |
128×80
|
| Panel Material |
Iron
|
| Panel Weight(kg) |
95
|
| Voltage(V) |
AC 110~AC 220
|
| Avg.Power Consumption(W/㎡) |
160(AC)
|
| Max.Power Consumption(W/㎡) |
480(AC)
|
| Serviceability |
Rear
|
| Protection Grade(Front/Rear) |
IP65/IP54
|
| Operating Temp/Humidity(℃/%RH) |
-20~40/10~90
|
| Storage Temp/Humidity(℃/%RH) |
-40~60/10~80
|
| Lifetime(Normal Temp)(hours) |
≥50000
|
| Compliant Standard |
CE FCC RoHS
|
|
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to LED Cube System Sdn Bhd
|
|
