MN16S Small Pixel LED DISPLAY
MN16S

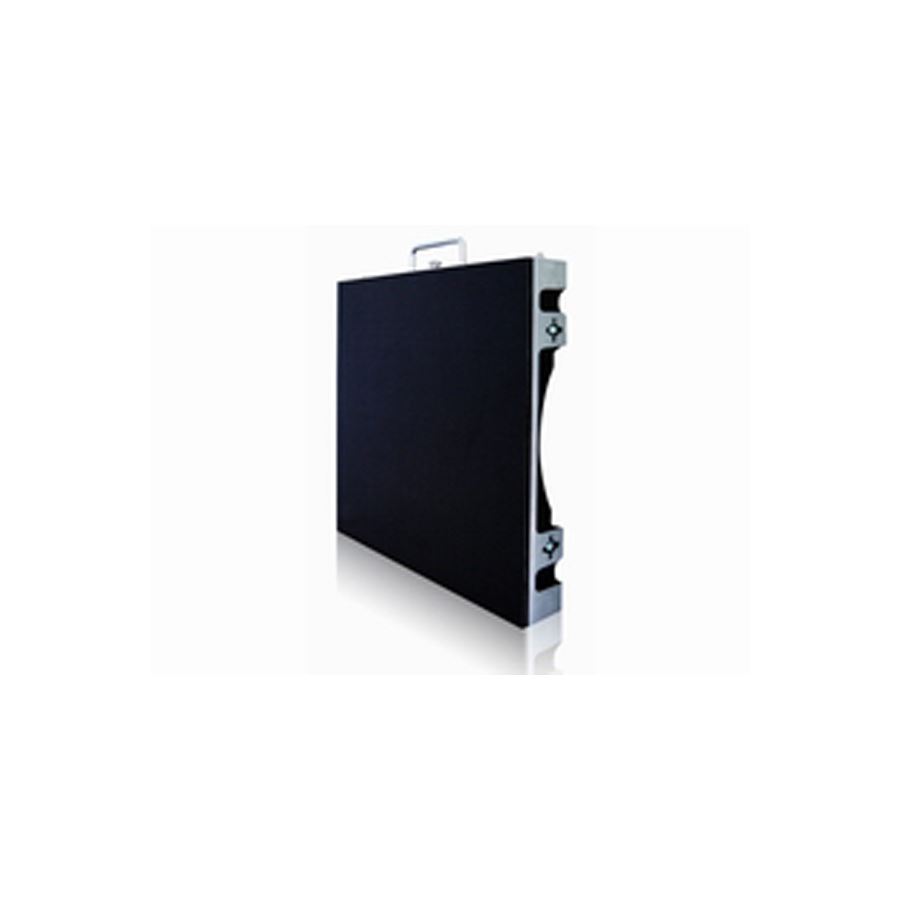

MN16S P1.667 Full Color Pixel Pitch Stage LED Display Screen
|
Cabinet weight is only 9.3 kg, depth 73 mm, decreasing the transportation
cost and the intensity of labor. |
|
Super thin power supply inside; Quiet fan design, excellent heat dissipation, noiseless.
|
|
Refresh rate＞1500HZ, 2 times higher than the regular screen, suitable for the rental occasion which requires much more higher display capability.
|
|
Super-light aluminium alloy connectors are durable and artistic.
|
|
Signal & power aviation connectors are water & dust proof, stable and reliable.
|
|
Cushion under the cabinet can protect the modules from being damaged.
|
|
Item
|
Value
|
| Pixel Pitch(mm) |
1.667mm
|
| Pixel Density(pixels/㎡) |
390,625dots/m2
|
| LED Configuration |
1R,1G,1B
|
| Colors |
>16.7M
|
| Brightness(nits) |
800CD/M2
|
| Grey Level(bit) |
14bit
|
| Refresh Rate(Hz) |
>1500HZ
|
| Viewing Angle(Deg.) |
H: 140/ V:140
|
| Dimension(inch) |
240mm x 240mm x 73mm
|
| Resolution(pixels) |
300 x 300mm
|
| Panel Weight(kg) |
9.3KG
|
| Protection Level |
IP43
|
| Input Voltage |
AC 110V~220V+/-10%
|
| Source |
DVI,RGB,CVBS,HDMI,YUV,SDI etc
|
| Operating Temperature |
-20℃~ +40℃
|
| Storage Temperature |
-20℃~ +60℃
|
| Operating Humidity |
10%~90%
|
| Storage Humidity |
10%~85%
|
| Life Span |
100,000 hrs
|
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to LED Cube System Sdn Bhd |
|
