R3II Slimmer & Lighter Stage Rental LED Display
R3II

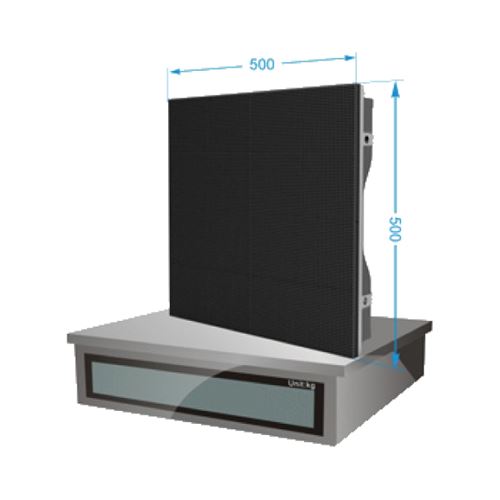

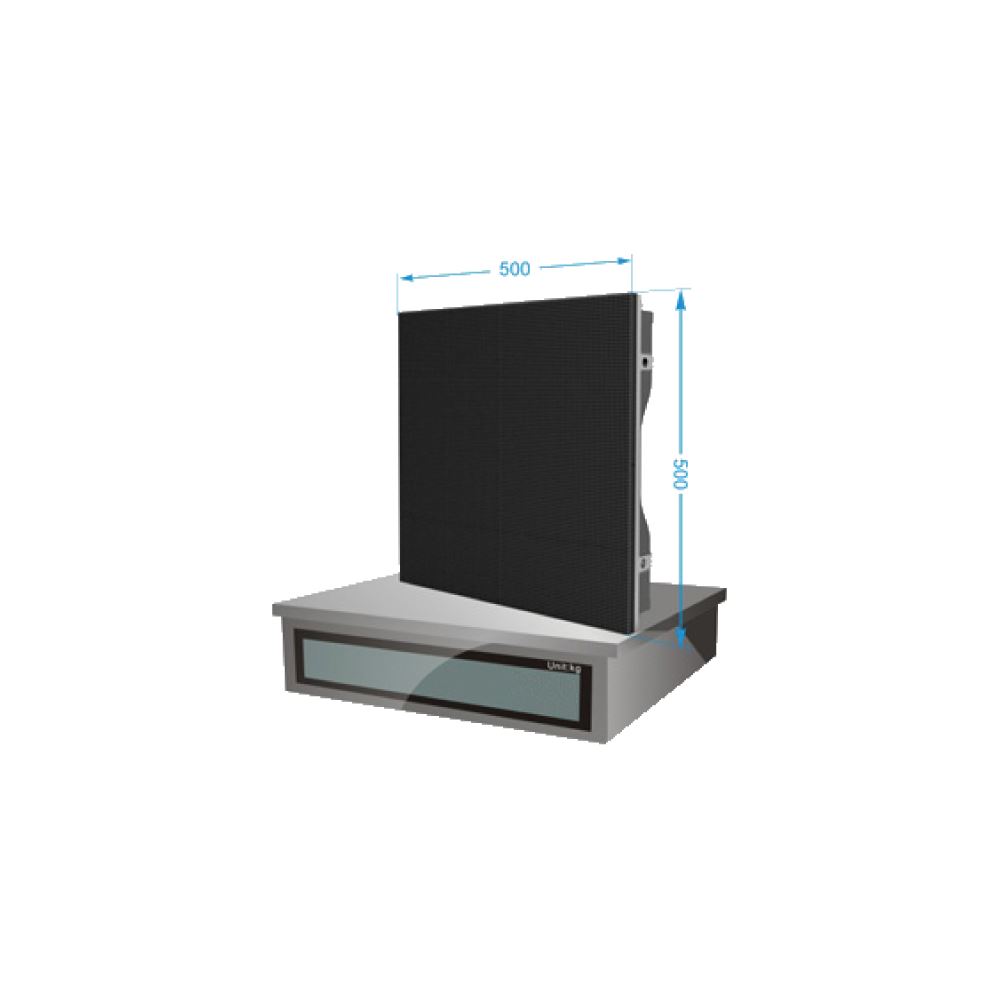

Light & Slim Panel
Each Panel is carefully crafted and Light weight.
Slimmer & Lighter Stage Rental LED Display
- Pixel pitch: 3.9 mm
- Pixel configuration: SMD
- Brightness: 1200 nits
- Refresh rate: 1920 Hz
- Drive mode: 1/16 scan
- Panel dimension: 500×500×90 mm

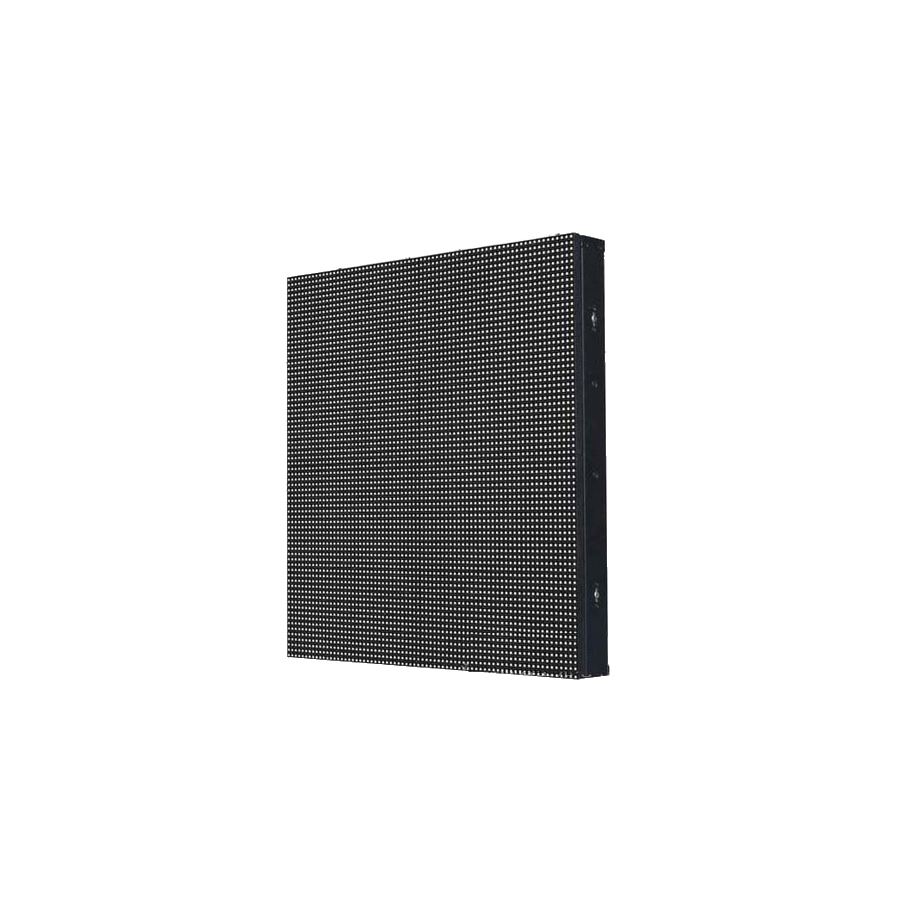

Seamless Design
Every Panel is manufactured with CNC auto-machines of high precision so that to guarantee its seamlessness during assembly.
Magnet Design(optional)
Push the module from the back.

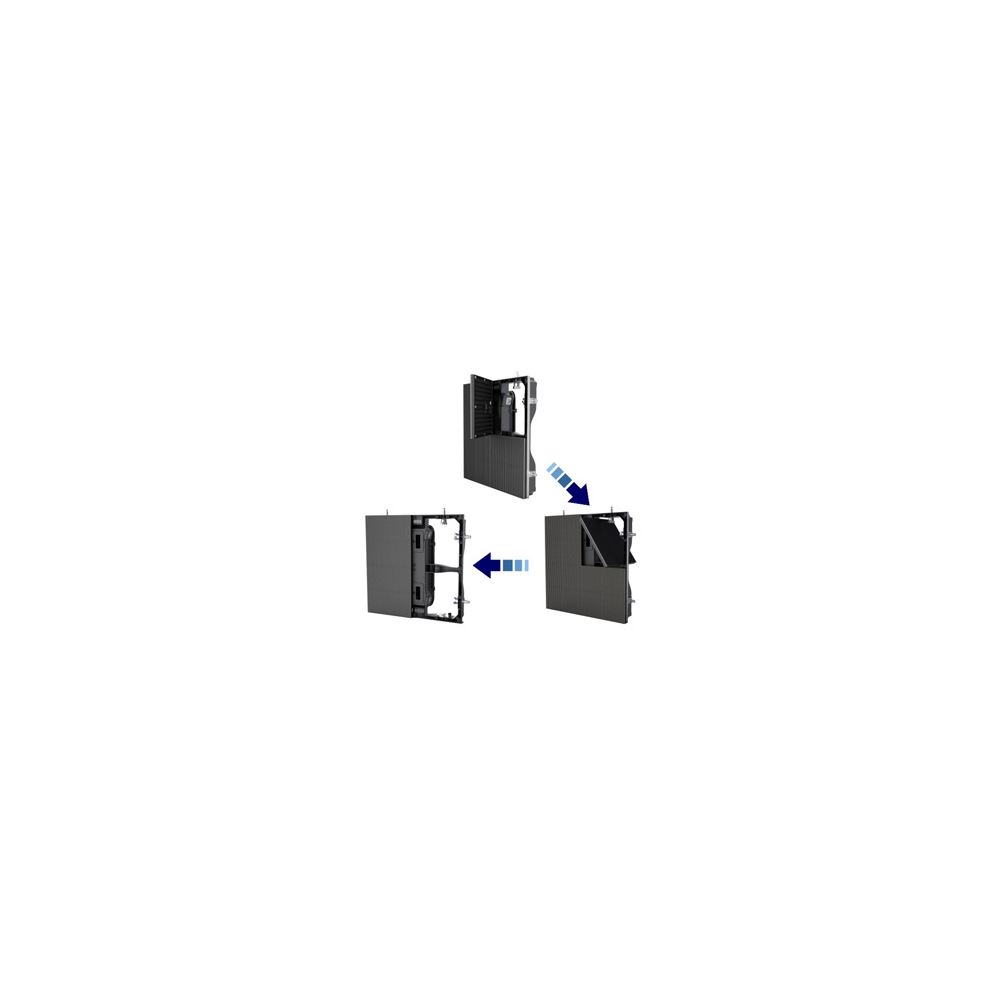

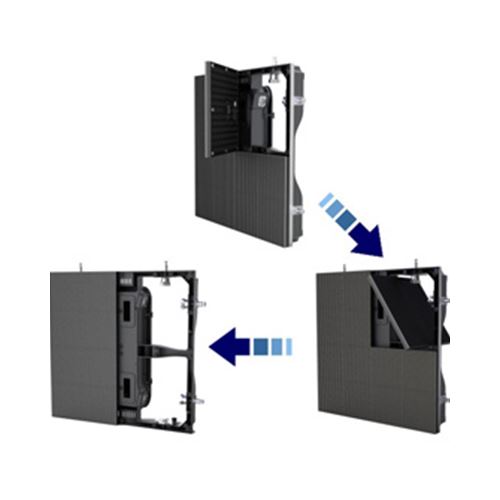

Special Structure
Take it out directly from the front or back.
| Item | Value |
| Pixel Pitch(mm) |
3.9
|
| Pixel Density(pixels/㎡) |
65746
|
| Viewing Angle(Deg.) |
H: 140/ V: 140
|
| Brightness(nits) |
1200
|
| Grey Level(bit) |
16
|
| Refresh Rate(Hz) |
1920
|
| Panel Dimension(mm) |
500(W)×500(H)×90(D)
|
| Panel Dimension(inch) |
19.69(W)×19.69(H)×3.54(D)
|
| Panel Resolution(pixels) |
128x128
|
| Panel Weight(kg) |
8
|
| Hanging Panel Quatity(panels) |
≤20(vertical)
|
| Panel Type and Material |
Die-casting aluminum
|
| Module Size(mm) |
250(W)×250(H)
|
| Module Size(inch) |
9.84(W)×9.84(H)
|
| Protection Grade(Front/Rear) |
IP40
|
| Avg.Power Consumption(W/㎡) |
240(AC)
|
| Max.Power Consumption(W/㎡) |
720(AC)
|
| Drive Mode |
1/16 scan
|
| Brightness Adjustment |
Manual/Auto/Programmable
|
| Operating Temp/Humidity(℃/%RH) |
-20~+40/10~90
|
| Storage Temp/Humidity(℃/%RH) |
-40~+60/10~80
|
| Lifetime(hours) |
≥50000(Nomal Temp)
|
| Compliant Standard |
CE,FCC,RoHS,TUV
|
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to LED Cube System Sdn Bhd |
|
