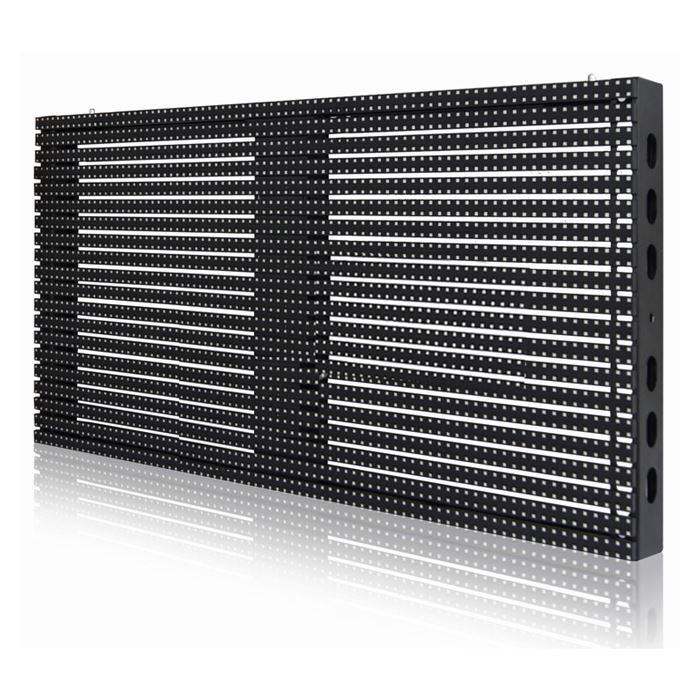

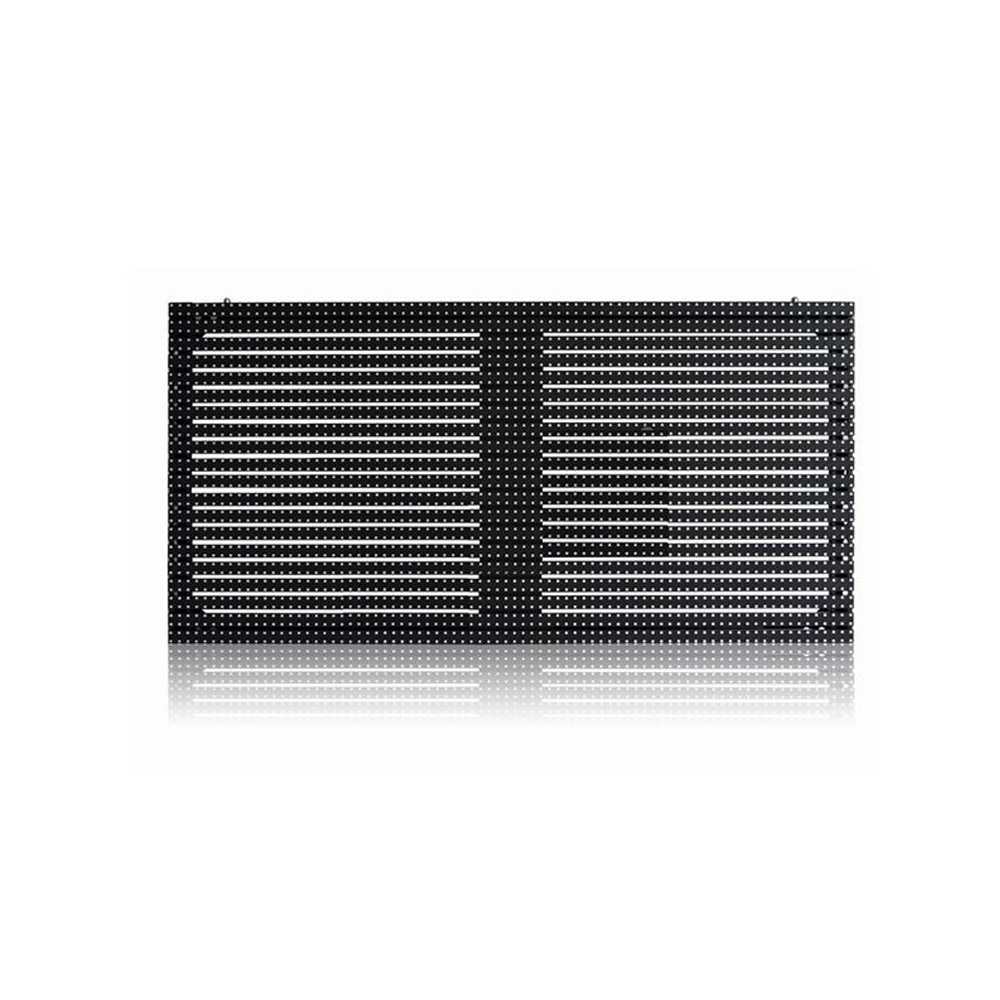

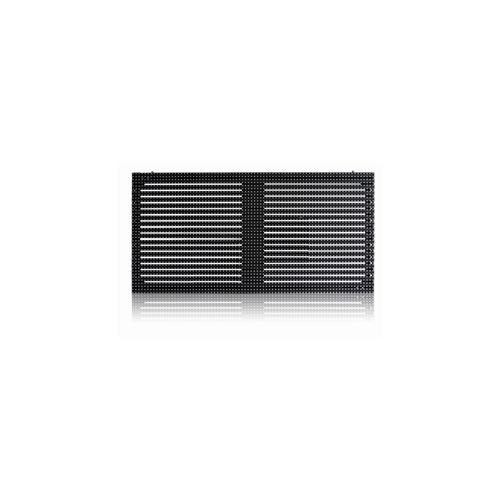

FU15S P15 fullcolor advertising outdoor LED display

Future Series only weighs 22kg/m2 while the traditional outdoor screen is normally 60kg/m2, the weight of which is decreased by 63%.

The installation just needs a location for the installation of frame instead of heavy steel structure, which can significantly reduce the load-bearing of buildings;

Self heat dissipation excludes the demand for air conditioning, saving power and expense;

The porous design can fulfill air convection and protect the screen against strong wind;

Single cabinet can be directly dismantled from the frontage of the screen,easy to maintain;

The permeability can reach 40-70% according to different distance so it won’t influence the lighting inside the building;

High brightness and waterproof IP66.

Item
Value
Pixel Pitch(mm)
15
Pixel Density(pixels/㎡)
4444dots/m2
Viewing Angle(Deg.)
H: 140/ V: 140
LED Configuration
1R,1G,1B
Colors
>16.7M
Brightness(nits)
8500CD/M2
Grey Level(bit)
16bit
Refresh Rate(Hz)
>4800HZ
Viewing Angle(Deg.)
H: 110/ V:45
Dimension(inch)
1200mm x 600mm x 88mm
Resolution(pixels)
80 x 40mm
Panel Weight(kg)
18.5KG
Protection Level
IP65
Input Voltage
AC 85V~250V+/-10%
Source
DVI,RGB,CVBS,HDMI,YUV,SDI etc
Operating Temperature
-20℃~ +40℃
Storage Temperature
-20℃~ +60℃
Operating Humidity
10%~90%
Storage Humidity
10%~85%
Life Span
100,000 hrs
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to LED Cube System Sdn Bhd
