FU30S OUTDOOR FIXED LED DISPLAY
FU30S

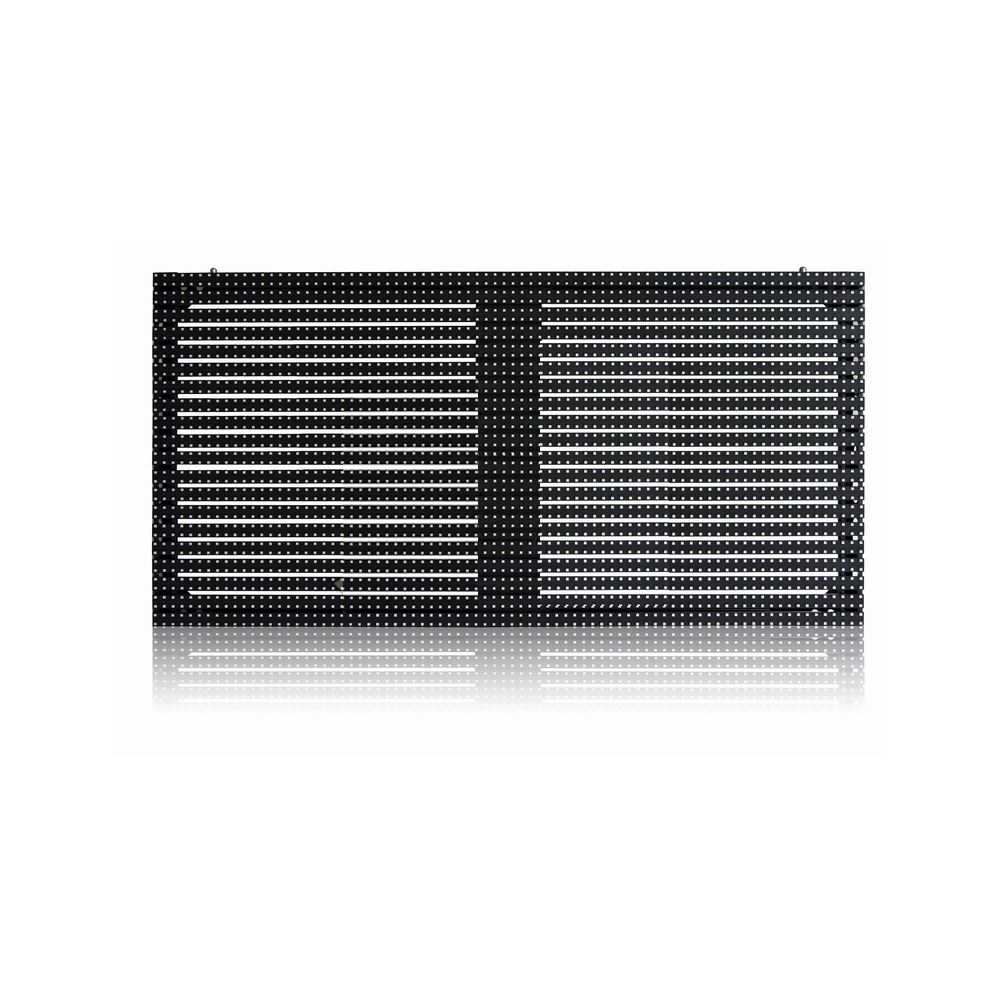

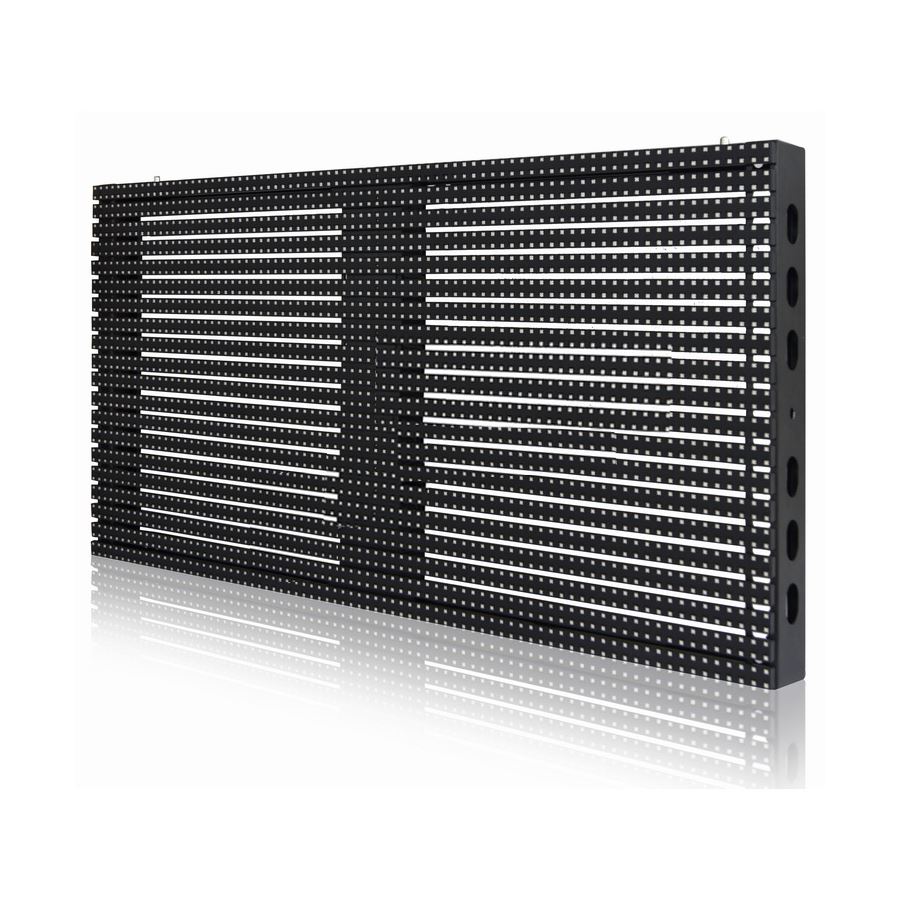

FU30S P30 fullcolor advertising outdoor LED display
|
Future Series only weighs 22kg/m2 while the traditional outdoor screen is normally 60kg/m2, the weight of which is decreased by 63%.
|
|
The installation just needs a location for the installation of frame instead of heavy steel structure, which can significantly reduce the load-bearing of buildings;
|
|
Self heat dissipation excludes the demand for air conditioning, saving power and expense;
|
|
The porous design can fulfill air convection and protect the screen against strong wind;
|
|
Single cabinet can be directly dismantled from the frontage of the screen,easy to maintain;
|
|
The permeability can reach 40-70% according to different distance so it won’t influence the lighting inside the building;
|
|
High brightness and waterproof IP66.
|
|
Item
|
Value
|
| Pixel Pitch(mm) |
30mm
|
| Pixel Density(pixels/㎡) |
1111dots/m2
|
| Viewing Angle(Deg.) |
H: 110/ V: 45
|
| LED Configuration |
1R,1G,1B
|
| Colors |
>16.7M
|
| Brightness(nits) |
5000CD/M2
|
| Grey Level(bit) |
16bit
|
| Refresh Rate(Hz) |
>4800HZ
|
| Viewing Angle(Deg.) |
H: 110/ V:45
|
| Dimension(inch) |
1200mm x 600mm
|
| Resolution(pixels) |
80 x 40mm
|
| Panel Weight(kg) |
14KG
|
| Protection Level |
IP65
|
| Input Voltage |
AC 85V~250V+/-10%
|
| Source |
DVI,RGB,CVBS,HDMI,YUV,SDI etc
|
| Operating Temperature |
-20℃~ +40℃
|
| Storage Temperature |
-20℃~ +60℃
|
| Operating Humidity |
10%~90%
|
| Storage Humidity |
10%~85%
|
| Life Span |
100,000 hrs
|
| Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to LED Cube System Sdn Bhd |
|
